Pioneer GM-DX871
1-Channel – Class D, 1600 W Max Power – Digital Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

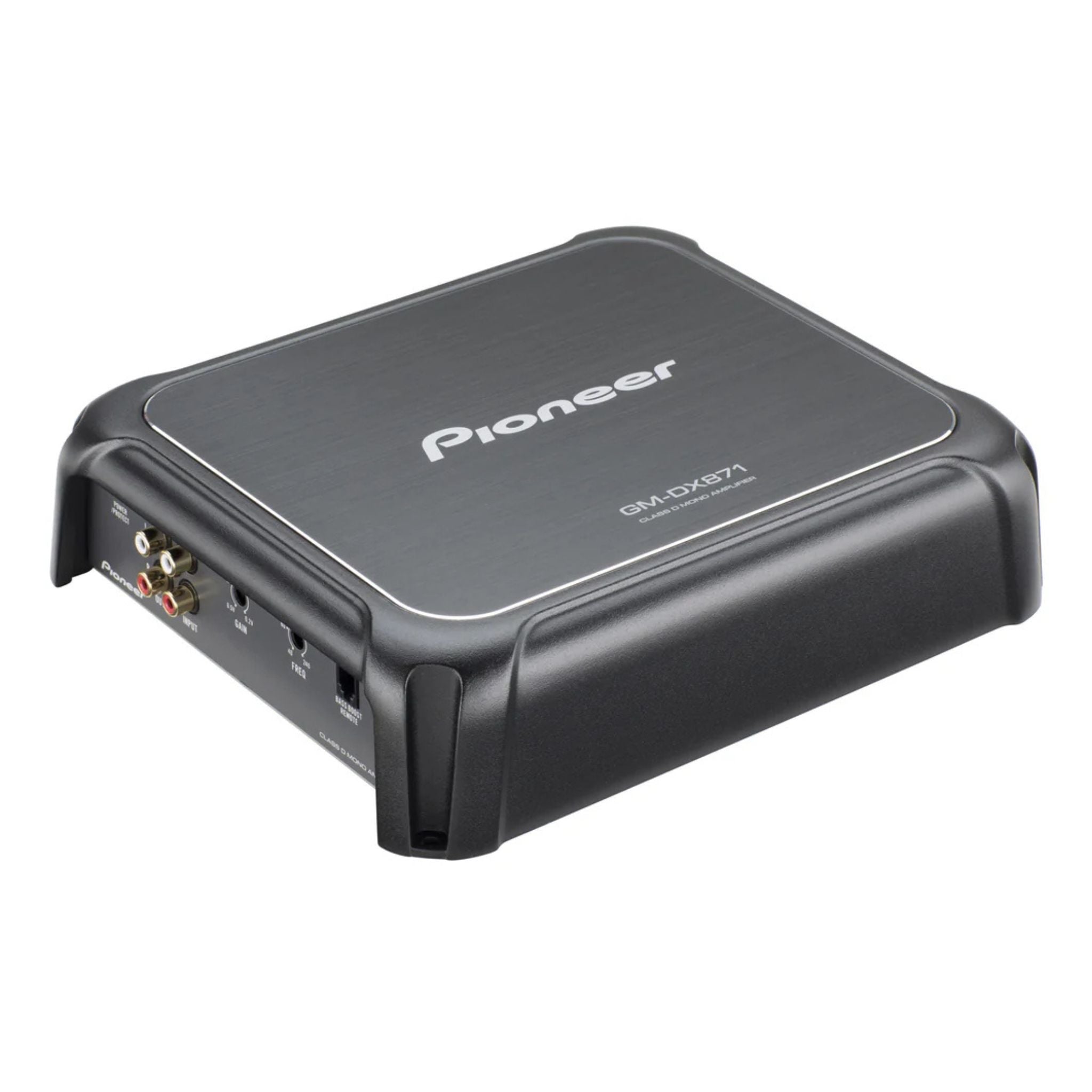

The Pioneer GM-DX871 is a powerful and compact Class D mono subwoofer amplifier designed to drive your car's bass with precision. Rated at a maximum of 1,600 watts, it is engineered for high efficiency and stability, even at a 1-ohm load. It features high-quality audio components, including gold-plated RCA terminals and high-current circuitry, to ensure clean, distortion-free sound.
Product Highlights
-
Massive Bass Power: Capable of delivering up to 800 watts RMS at 1 ohm, providing enough juice for high-performance subwoofers.
-
Efficient Class D Design: This technology allows for a chassis that is 50% smaller than traditional Class AB amplifiers, making it much easier to install in tight spaces like under seats or in small trunks.
-
Total Vibration Control (TVC): Uses a specialized heat sink structure and optimized mounting points to suppress vibrations, protecting the internal circuitry and maintaining sound quality.
-
Protection Control System (PCS): Continuously monitors temperature and input levels to prevent overheating and circuit shutdowns during long listening sessions.
Key Features
-

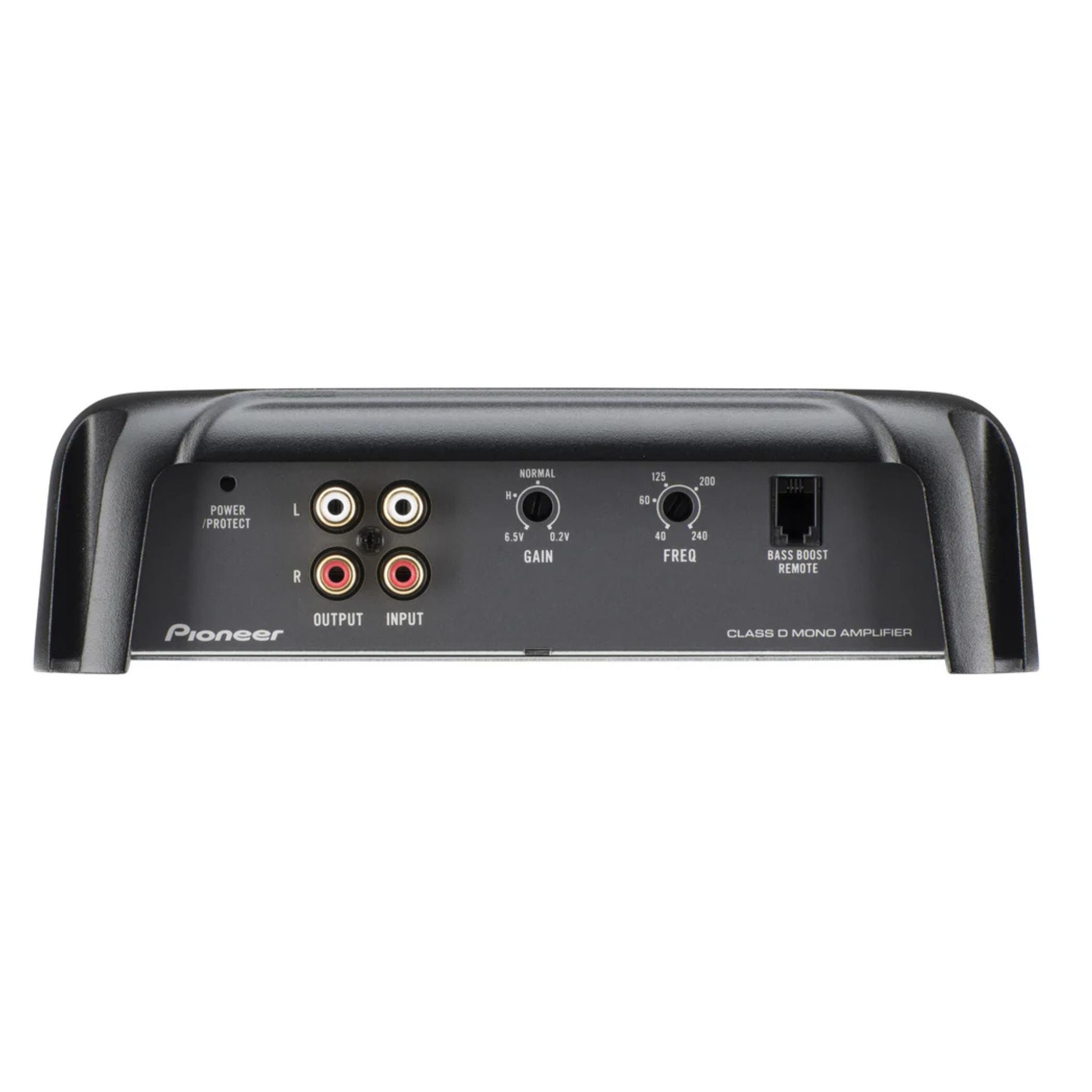

Variable Low-Pass Filter: Adjustable from 40 Hz to 240 Hz, allowing you to fine-tune the audio frequency to match your specific subwoofer's characteristics.
-
Wired Bass Remote: Includes a remote knob that lets you adjust the bass boost (0 to 18 dB at 50 Hz) directly from the driver's seat.
-
Speaker-Level Inputs: Features automatic signal sensing, meaning you can integrate this amp into a factory system without needing to run a separate remote turn-on wire.
-
High-End Build: Features a textured aluminum panel and a tough frame for durability, alongside gold-plated RCA terminals for better conductivity and corrosion resistance.
Technical Specifications
| Feature | Specification |
| Amplifier Class | Class D (Mono) |
| Max Power Output | 1,600 Watts |
| RMS Power (1-Ohm) | 800 Watts x 1 |
| RMS Power (2-Ohm) | 500 Watts x 1 |
| RMS Power (4-Ohm) | 300 Watts x 1 |
| Frequency Response | 10 Hz to 240 Hz |
| Total Harmonic Distortion | < 1% |
| Dimensions | 9-7/8" W x 2-3/8" H x 8-1/2" D |

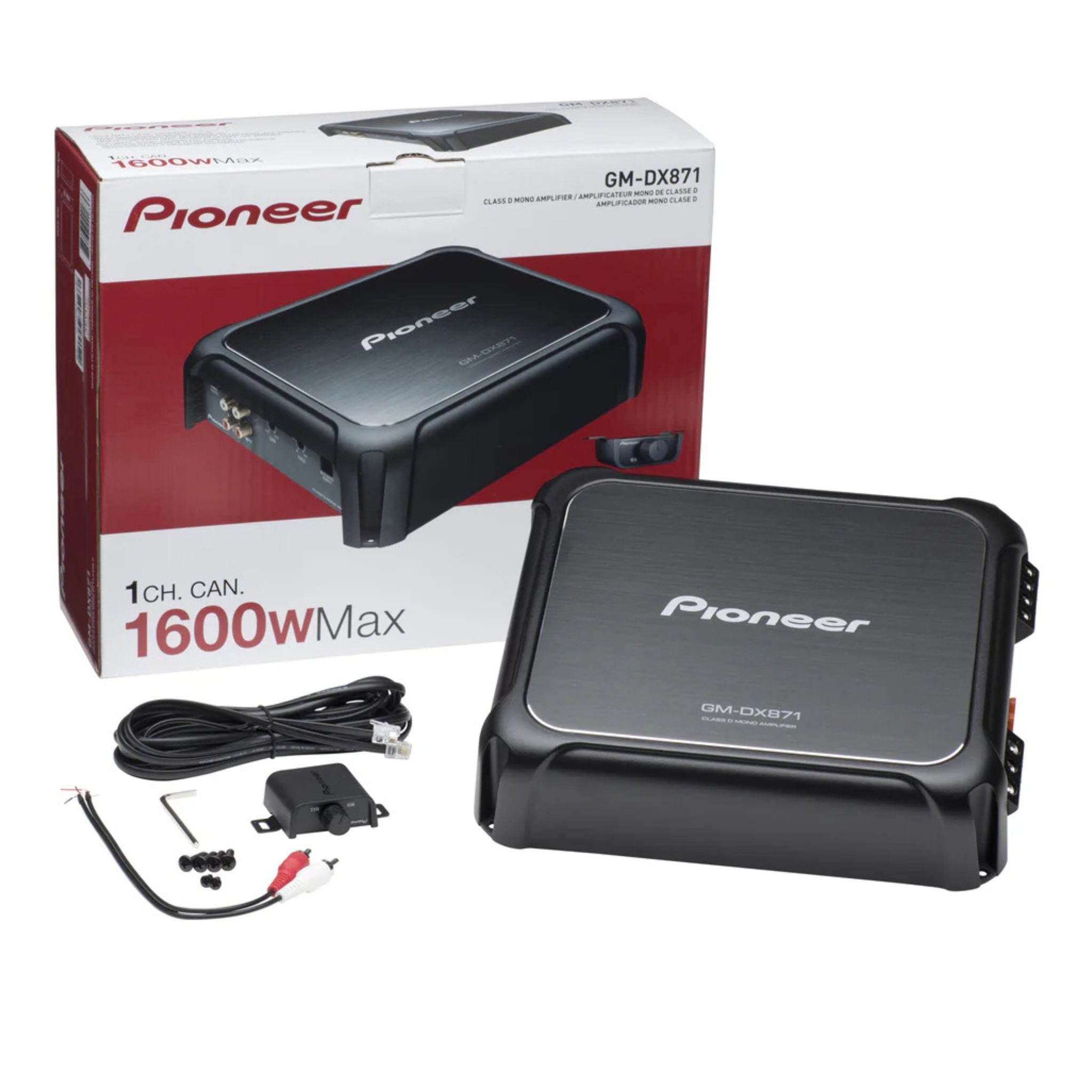

What’s In The Box?
-
(1) Pioneer GM-DX871 Mono Amplifier
-
(1) Wired Bass Boost Remote Control (with cable)
-
(1) Speaker Level to RCA Input Adapter
-
(2) Spare 40-amp fuses (installed)
-
Mounting hardware and owner's manual
