Alpine R2-A150M
R-Series 1500W Mono Subwoofer Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Alpine R2-A150M R-Series 1500W Mono Subwoofer Amplifier
The Alpine R2-A150M is a high-performance mono Class D amplifier from Alpine’s next-generation R-Series lineup. Engineered to deliver up to 1500 watts RMS at 1 ohm, it provides clean, efficient power for demanding subwoofer setups. Featuring a compact chassis with a one-sided terminal layout and top-mounted controls, the R2-A150M is designed for streamlined installation and precise sound tuning. With advanced features like variable low-pass and subsonic filters, bass boost, and compatibility with Alpine’s RUX-KNOB.2 remote bass control, this amplifier is ideal for audiophiles seeking deep, impactful bass in their car audio system.
| Key Features | |
|---|---|
| Power Output | 700W RMS x 1 @ 4Ω; 1200W RMS x 1 @ 2Ω; 1500W RMS x 1 @ 1Ω |
| Amplifier Class | Class D |
| Frequency Response | 10Hz – 400Hz |
| Signal-to-Noise Ratio | >75dB |
| THD at Rated RMS Power | ≤1% |
| Crossover Controls | Variable low-pass filter (50Hz – 400Hz, 24dB/octave); Variable subsonic filter (8Hz – 40Hz, 24dB/octave) |
| Bass Boost | 0–12dB at 50Hz |
| Input Sensitivity | Low level: 0.1 – 4V; High level: 0.4 – 10V |
| Optional Remote | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |
| Dimensions (W x H x D) | 13.5" x 2.6" x 7.3" |
| Weight | 7.1 lbs |
| What’s in the Box |
|---|
| 1 × Alpine R2-A150M Mono Subwoofer Amplifier (with six installed 25A ATO fuses) |
| 4 × Mounting Screws |
| 1 × 3mm Allen Wrench |
| 1 × 2.5mm Allen Wrench |
| 1 × Owner’s Manual |
| 1 × Alpine Verification Certificate (“Birth Sheet”) |
| 1 × Warranty Information Sheet |
| 1 × Installation Guide |
| 1 × Alpine Registration Card |
| Technical Specifications | |
|---|---|
| Model Number | R2-A150M |
| Channels | 1 (Mono) |
| Power Output @ 4Ω | 700W RMS x 1 |
| Power Output @ 2Ω | 1200W RMS x 1 |
| Power Output @ 1Ω | 1500W RMS x 1 |
| Frequency Response | 10Hz – 400Hz |
| Signal-to-Noise Ratio | >75dB |
| THD at Rated RMS Power | ≤1% |
| Input Sensitivity | Low level: 0.1 – 4V; High level: 0.4 – 10V |
| Crossover Controls | Variable low-pass filter (50Hz – 400Hz, 24dB/octave); Variable subsonic filter (8Hz – 40Hz, 24dB/octave) |
| Bass Boost | 0–12dB at 50Hz |
| Fuse Rating | 25A × 6 (150A total) |
| Recommended Wiring | 4 AWG power and ground leads |
| Dimensions (W x H x D) | 13.5" x 2.6" x 7.3" |
| Weight | 7.1 lbs |
| Optional Remote | Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |
Alpine R2-A150M Next-Generation R-Series 1500W RMS x 1 at 1 Ohm, Class-D Mono Subwoofer Car Amplifier
The Alpine R2-A150M Mono Amplifier is built for those who demand nothing less than raw, powerful bass with pristine clarity. Designed using Alpine’s latest Class-D amplifier technology, it delivers up to 1500W RMS at 1 Ohm with remarkable efficiency and precision. The compact, space-saving design makes it an ideal upgrade for any vehicle, while its refined engineering ensures consistent performance even under heavy load. Every beat hits with depth and authority, transforming your listening experience into a truly immersive sound journey.
Installation is effortless thanks to its smart design — all connections are located on one side for a clean, organized setup, and the controls are neatly placed under a removable top plate for easy tuning. Whether paired with a single subwoofer or multiple drivers, the R2-A150M brings Alpine’s signature sound quality and power to your car audio system.
Key Features
- Class-D Mono Subwoofer Amplifier with 1500W RMS Output at 1 Ohm
- Delivers 1200W RMS at 2 Ohms for Versatile System Configuration
- Advanced Class-D Technology for High Efficiency and Low Distortion
- Clean, Dynamic Bass Response with Exceptional Accuracy
- Compact Chassis Design for Space-Saving Installation

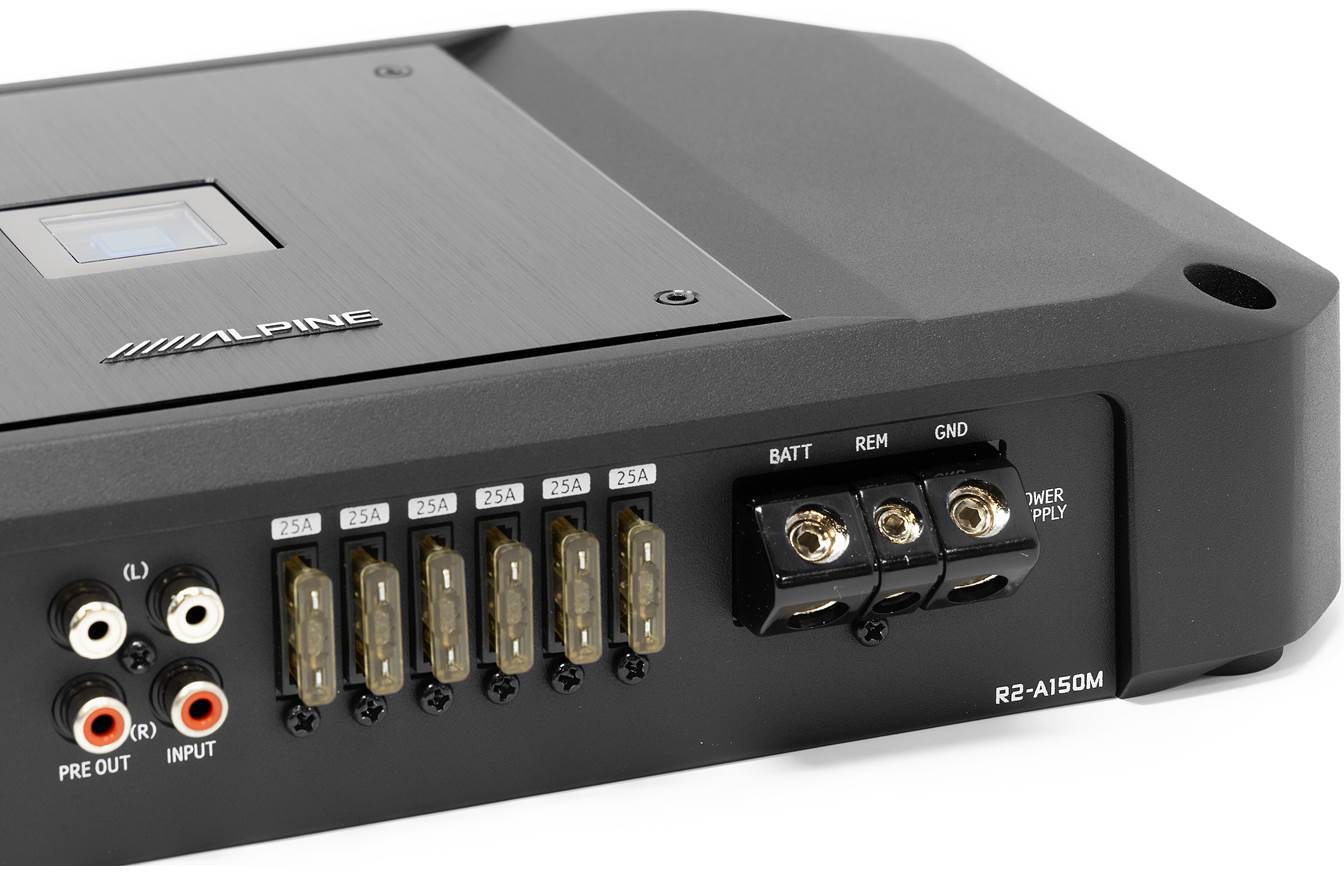

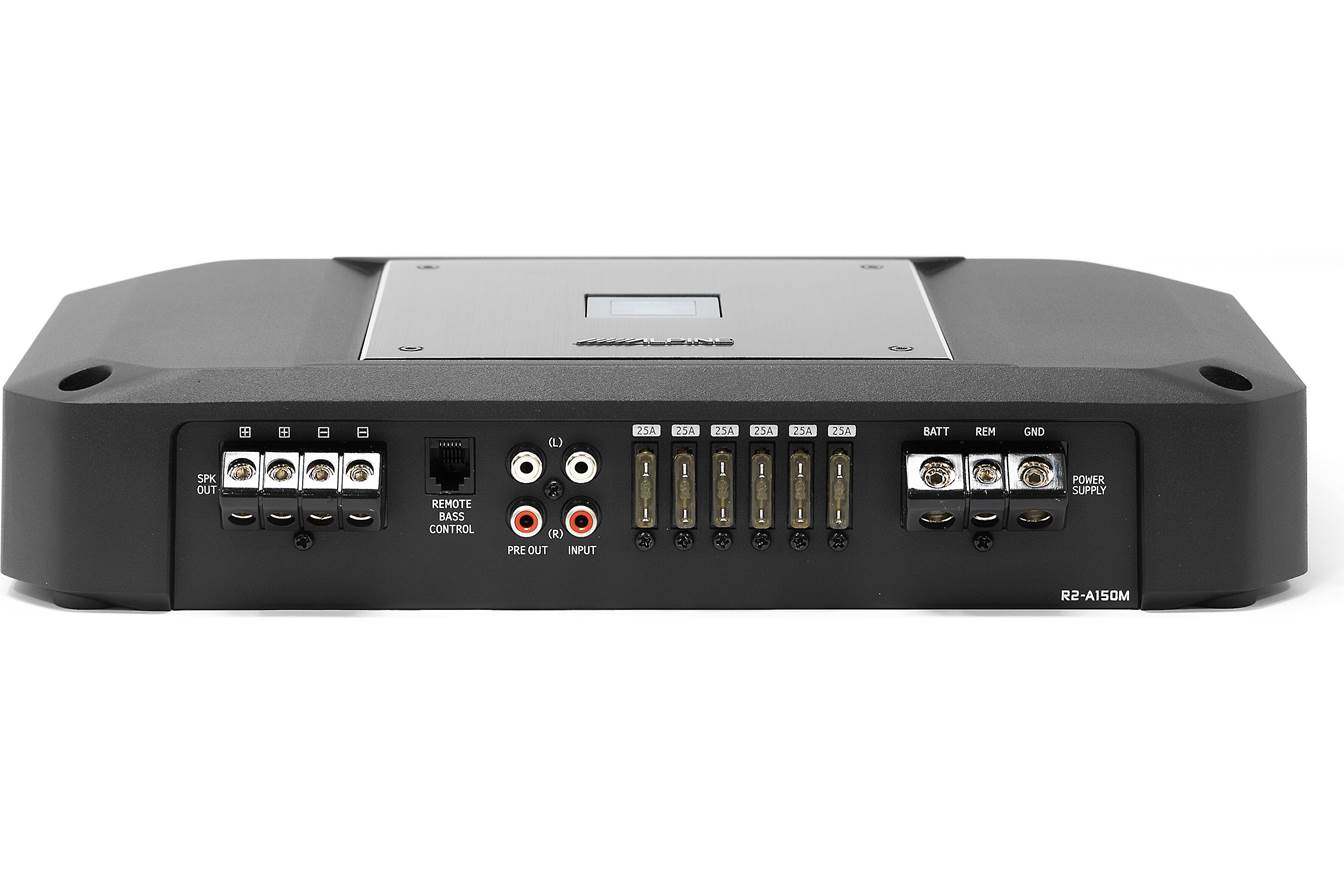

- All Connections on One Side for a Neat, Professional Setup
- Top-Mounted Controls Hidden Under a Removable Plate
- Adjustable Gain, Low-Pass Filter, and Bass EQ for Fine-Tuned Sound
- Built-In Thermal, Overload, and Short Circuit Protection
- Integrated Mounting Feet for Easy and Secure Installation
- Premium Build Quality Designed for Long-Term Reliability
- Perfect Match for Alpine R-Series Subwoofers
What's Inside?
- Class-D Mono Subwoofer Car Amplifier (six installed 25A ATO fuses)
- Four 1" pan-head screws
- 3mm Allen key
- 2.5mm Allen key
