Alpine R2-A60F
R-Series 4-Channel Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

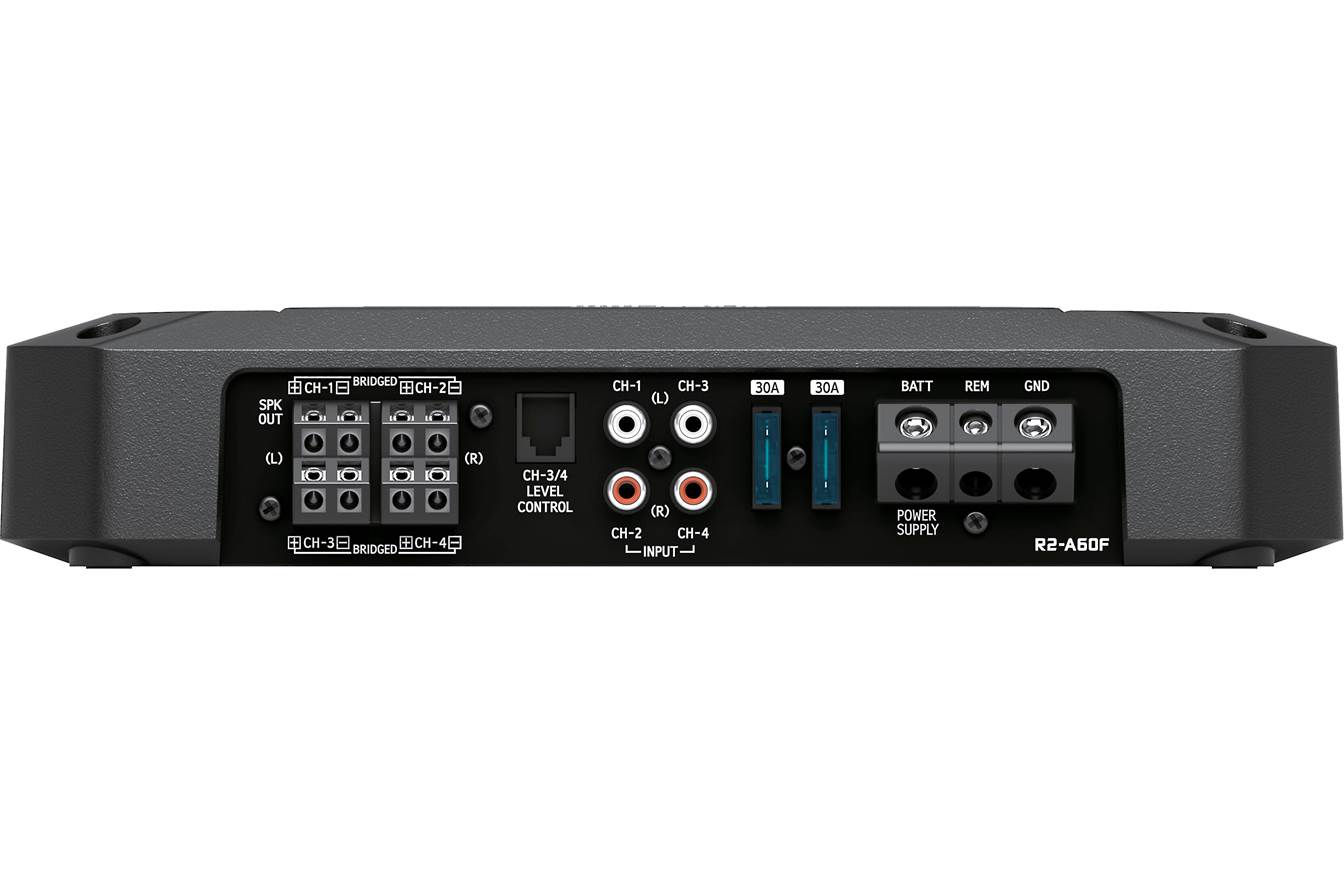

Alpine R2-A60F 4-Channel Class D Hi-Res Car Amplifier
The Alpine R2-A60F is a high-performance 4-channel Class D amplifier designed to deliver exceptional sound quality and power in a compact form. Part of Alpine’s next-generation R-Series, it offers Hi-Res Audio certification, supporting frequencies up to 45kHz for crystal-clear audio reproduction. With flexible configuration options, including 4-, 3-, or 2-channel modes, and advanced crossover controls, the R2-A60F is ideal for audiophiles seeking a versatile and powerful amplifier for their car audio system.
| Key Features | |
|---|---|
| Power Output | 100W RMS x 4 @ 4Ω; 150W RMS x 4 @ 2Ω; 300W RMS x 2 bridged @ 4Ω |
| Amplifier Class | Class D |
| Hi-Res Audio Certified | Yes, up to 45kHz frequency response |
| Frequency Response | 10Hz – 45kHz |
| Signal-to-Noise Ratio | >80dB |
| THD+N | ≤1% at rated power |
| Crossover Controls | Variable high-pass, low-pass, and bandpass filters (50Hz – 6kHz) |
| Input Sensitivity | Low level: 0.2 – 4V; High level: 0.5 – 10V |
| Dimensions (W x H x D) | 11.1" x 2.17" x 6.5" |
| Weight | 7 lbs, 3 oz |
| Optional Remote | Compatible with Alpine RUX-KNOB.2 (sold separately) |
| What’s in the Box |
|---|
| 1 × Alpine R2-A60F 4-Channel Amplifier (with two installed 30A ATO fuses) |
| 4 × Mounting Screws |
| 3 × Allen Wrenches (2mm, 2.5mm, 3mm) |
| 1 × Owner’s Manual |
| 1 × Alpine Verification Certificate (“Birth Sheet”) |
| 1 × Warranty Information Sheet |
| 1 × Installation Guide |
| 1 × Alpine Registration Card |
| Technical Specifications | |
|---|---|
| Model Number | R2-A60F |
| Channels | 4 |
| Power Output @ 4Ω | 100W RMS x 4 |
| Power Output @ 2Ω | 150W RMS x 4 |
| Bridged Power Output @ 4Ω | 300W RMS x 2 |
| Frequency Response | 10Hz – 45kHz |
| Signal-to-Noise Ratio | >80dB |
| THD+N | ≤1% at rated power |
| Input Sensitivity | Low level: 0.2 – 4V; High level: 0.5 – 10V |
| Crossover Controls | Variable HPF, LPF, BPF (50Hz – 6kHz) |
| Dimensions (W x H x D) | 11.1" x 2.17" x 6.5" |
| Weight | 7 lbs, 3 oz |
| Fuse Rating | 30A x 2 |
| Recommended Wiring | 4 AWG power and ground leads |
| Optional Remote | Alpine RUX-KNOB.2 (sold separately) |
