Alpine R2-SB10V
R-Series 10-Inch Halo Subwoofer Enclosure
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

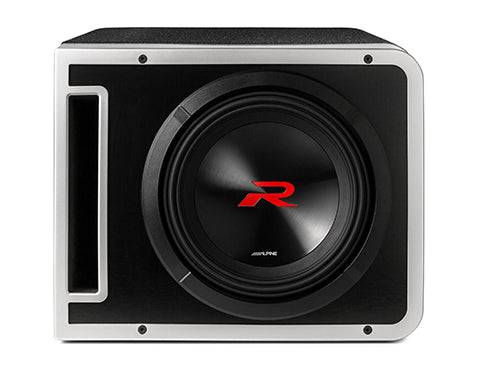

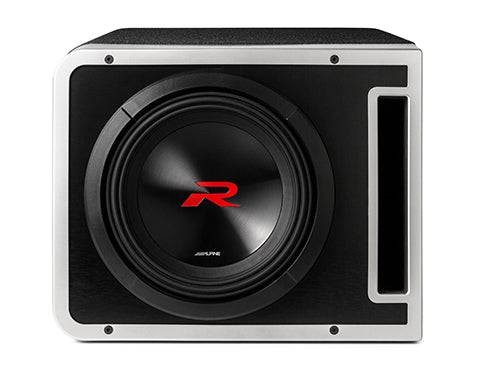

Alpine R2-SB10V R-Series 10" Halo Preloaded Subwoofer Enclosure
The Alpine R2-SB10V is a 10" ported subwoofer enclosure featuring Alpine's next-generation R2-W10D4 subwoofer. Designed with the innovative Alpine Halo aesthetic, it combines high-performance bass output with a sleek, modern look. The ProLink™ system allows for easy expansion by linking two enclosures together (linking kit sold separately), providing flexibility for future system upgrades. Built with CARB-compliant 3/4" MDF and finished with a brushed aluminum front baffle and premium black carpet, this enclosure delivers both durability and style.
| Key Features | |
|---|---|
| Subwoofer Type | 10" Dual 4-Ohm Voice Coil (wired for 2Ω load) |
| Enclosure Type | Ported, tuned to 36Hz |
| Cone Material | Kevlar-Reinforced Pulp |
| Dust Cap | Polypropylene/Ceramic Composite |
| Surround | High-Amplitude Multi-Roll (HAMR) |
| Magnet Structure | Double-Stacked Strontium-Ferrite |
| ProLink™ | Linkable to second enclosure with optional KTX-H10 kit |
| Construction | 3/4" CARB-Compliant MDF with internal bracing |
| Finish | Premium black carpet with brushed aluminum front baffle |

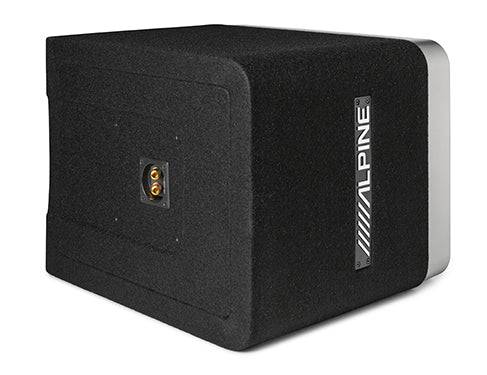

| Terminals | Gold-Plated Binding Posts (accepts up to 12 AWG wire) |
| What’s in the Box |
|---|
| 1 × R2-SB10V Ported Enclosure with Preloaded R2-W10D4 Subwoofer |
| 1 × Warranty Information |
| 1 × Product Registration Information |
| Technical Specifications | |
|---|---|
| Power Handling (RMS) | 750W |
| Power Handling (Peak) | 2250W |
| Frequency Response | 26Hz – 200Hz |
| Sensitivity | 82.3dB (1W / 1m) |
| Impedance | 2 Ohms (Dual 4Ω coils wired in parallel) |
| Voice Coil Diameter | 65mm |
| Xmax | 20mm |
| Magnet Weight | 123 oz |
| Dimensions (W × H × D) | 16.13" × 12.75" × 14.94" |
| Enclosure Weight | Approximately 45 lbs |
| Warranty | 1 Year |
