Alpine R2-SB12V
Upgrade Your Vehicle With Confidence. This Is Built to Fit, Perform, and Last

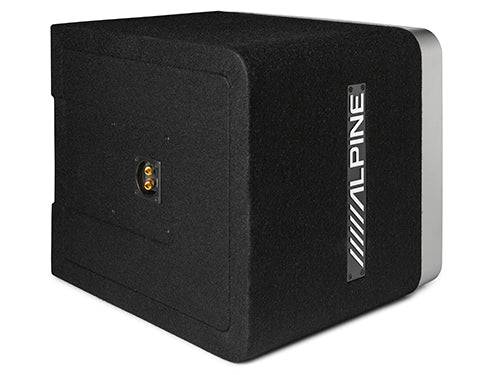

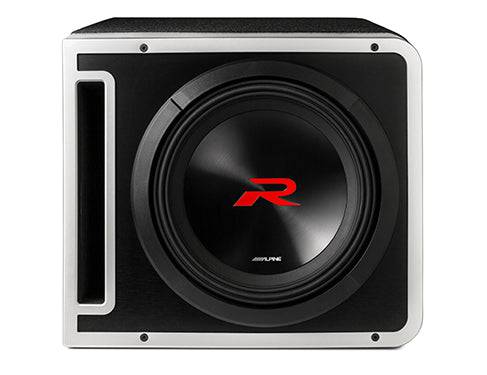

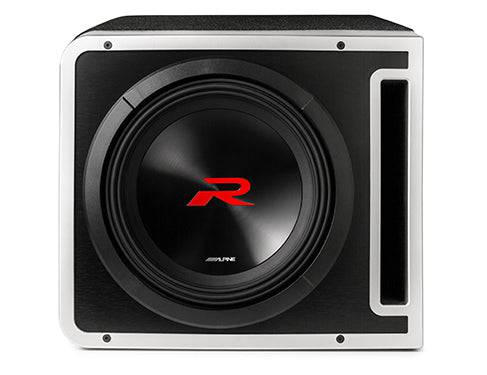

Alpine R2-SB12V R-Series 12" Halo Preloaded Subwoofer Enclosure
The Alpine R2-SB12V is a premium 12" ported subwoofer enclosure featuring Alpine's next-generation R2-W12D4 subwoofer. Designed with the innovative Alpine Halo aesthetic, it combines high-performance bass output with a sleek, modern look. The ProLink™ system allows for easy expansion by linking two enclosures together (linking kit sold separately), providing flexibility for future system upgrades. Built with CARB-compliant 3/4" MDF and finished with a brushed aluminum front baffle and premium black carpet, this enclosure delivers both durability and style.
| Key Features | |
|---|---|
| Subwoofer Type | 12" Dual 4-Ohm Voice Coil (wired for 2Ω load) |
| Enclosure Type | Ported, tuned to 35Hz |
| Cone Material | Kevlar-Reinforced Pulp |
| Dust Cap | Polypropylene/Ceramic Composite |
| Surround | High-Amplitude Multi-Roll (HAMR) |
| Magnet Structure | Double-Stacked Strontium-Ferrite |
| ProLink™ | Linkable to second enclosure with optional KTX-H12 kit |
| Construction | 3/4" CARB-Compliant MDF with internal bracing |
| Finish | Premium black carpet with brushed aluminum front baffle |
| Terminals | Gold-Plated Binding Posts (accepts up to 12 AWG wire) |
| What’s in the Box |
|---|
| 1 × R2-SB12V Ported Enclosure with Preloaded R2-W12D4 Subwoofer |
| 1 × Warranty Information |
| 1 × Product Registration Information |
| Technical Specifications | |
|---|---|
| Power Handling (RMS) | 750W |
| Power Handling (Peak) | 2250W |
| Frequency Response | 24Hz – 200Hz |
| Sensitivity | 85dB (1W / 1m) |
| Impedance | 2 Ohms (Dual 4Ω coils wired in parallel) |
| Voice Coil Diameter | 65.5mm (2.6") |
| Xmax | 20mm |
| Magnet Weight | 144 oz |
| Dimensions (W × H × D) | 17.13" × 14.813" × 15.563" |
| Enclosure Weight | Approximately 50 lbs |
| Warranty | 1 Year |
- Ships within 1–3 business days from our warehouse
- Tracking included with every order
- Free 30-day returns if it doesn’t work for your setup
- 2-year manufacturer warranty
- Authorized dealer guarantee
- Real installer-backed support before and after purchase

Why This Upgrade Makes Daily Driving Better
Ease of Use & Safety
Expandable by Design
FITMENT & INSTALLATION MADE SIMPLE
WHAT VEHICLES IT WORKS WITH
We verify compatibility before you buy, no guesswork.
DIY FRIENDLY IF:
- You're comfortable with basic tools
- You follow provided instructions
PROFESSIONAL INSTALL RECOMMENDED IF:
- Your vehicle requires dash kits or wiring adapters
- You want a turnkey experience
INSTALLATION CREDIT & SUPPORT:
- $75 Installation Credit when purchased online
- Speak to real installers before you buy
- Bring it into one of our locations for install
Why Buying This Here Is Safer Than Anywhere Else
![]() |
MARKETPLACES | |
|---|---|---|
|
Verified Vehicle Fit
|
||
|
Installer Support
|
||
|
Authorized Products
|
||
|
Easy Returns
|
||
|
Physical stores & real installers
|
