Alpine R2-W10D4
R Series 10 inch Subwoofer with Dual 4-Ohm
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

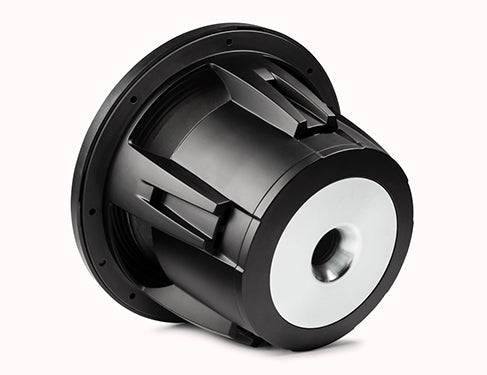

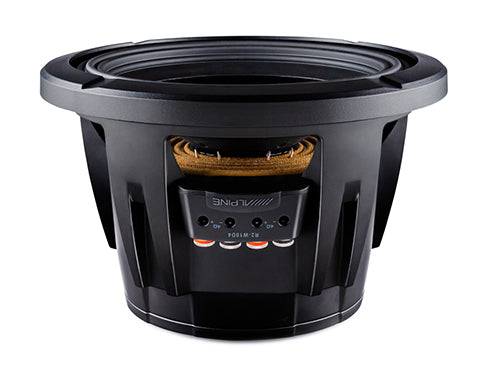

Alpine R2-W10D4 R-Series 10" Dual 4-Ohm Subwoofer
The Alpine R2-W10D4 is a 10" subwoofer engineered for deep, accurate bass and high-output performance. Featuring a Kevlar-reinforced pulp cone and a polypropylene/ceramic composite dust cap, it ensures durability and reduced distortion. The High-Amplitude Multi-Roll (HAMR) surround allows for maximum cone excursion, delivering powerful bass response. With dual 4-ohm voice coils and configuration jumpers, it offers flexible wiring options for various system setups.
| Key Features | |
|---|---|
| Subwoofer Type | 10" Dual 4-Ohm Voice Coil |
| Cone Material | Kevlar-Reinforced Pulp |
| Dust Cap | Polypropylene/Ceramic Composite |
| Surround | High-Amplitude Multi-Roll (HAMR) |
| Magnet Structure | Double-Stacked with Integrated Faraday Ring |
| Grille | Optional (KTE-10G, sold separately) |
| What’s in the Box |
|---|
| 1 × 10" Dual 4-Ohm Subwoofer |
| 1 × Cosmetic Trim Ring |
| 2 × Jumper Wires for DVC Configuration |
| 1 × Owner’s Manual |
| Technical Specifications | |
|---|---|
| Power Handling (RMS) | 750W |
| Power Handling (Peak) | 2250W |
| Frequency Response | 26Hz – 200Hz |
| Sensitivity | 82.8dB (1W / 1m) |
| Impedance | Dual 4 Ohms |
| Mounting Depth | 6" (152mm) |
| Cutout Diameter | 9-1/16" (231mm) |
| Voice Coil Diameter | 65mm |
| Xmax | 20mm |
| Magnet Weight | 123 oz |
| Recommended Sealed Box Volume | 0.48 – 0.93 cu. ft. |
| Recommended Ported Box Volume | 0.83 – 1.38 cu. ft. |
| Warranty | 1 Year |
