Alpine RS-W12D4
12-Inch R-Series Shallow Subwoofer with Dual 4-Ohm Voice Coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Alpine RS-W12D4 12" R-Series Shallow Subwoofer
The Alpine RS-W12D4 is a 12-inch shallow-mount subwoofer engineered to deliver powerful, accurate bass in tight spaces. Built with Alpine’s R-Series DNA and featuring a neodymium magnet, 4" voice coil, and ultra-shallow mounting depth, this subwoofer combines space-saving convenience with serious performance for demanding audio systems.
Key Features
| Feature | Details |
|---|---|
| Subwoofer Type | 12" Shallow-Mount Subwoofer |
| Voice Coils | Dual 4-Ohm |
| Power Handling | 600W RMS / 1800W Peak |
| Frequency Response | 26Hz – 200Hz |
| Sensitivity | 81 dB |
| X-Max | 20mm |
| Mounting Depth | 3.25" (82.55mm) |
| Voice Coil Diameter | 4" (102mm) |
| Magnet Type | Neodymium |
| Frame | Cast Aluminum |
| Dust Cap | Aluminum |
| Recommended Enclosure | Sealed Box (0.65 – 1.5 cu. ft.) |
| Warranty | 1 Year |
What’s in the Box
| Alpine RS-W12D4 12" Subwoofer |

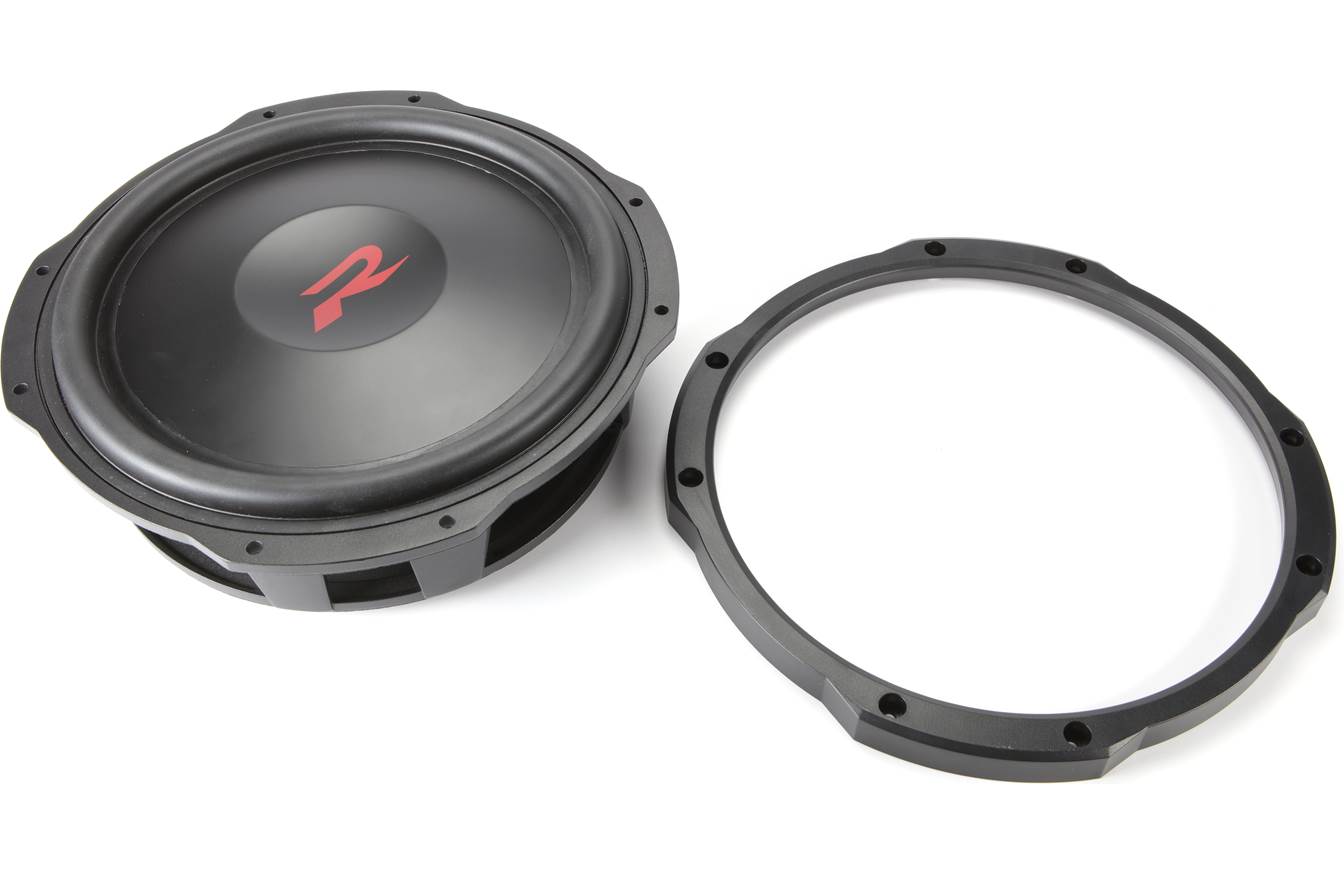

| Plastic Trim Ring |
| 2 x 18" Jumper Wires (12-gauge) |
| 2.5mm Hex Key |
| Owner’s Manual |
| Warranty Card |
| Online Product Registration Info |
Technical Specifications
| Spec | Value |
|---|---|
| Subwoofer Size | 12" (30.5 cm) |
| Voice Coil Configuration | Dual 4-Ohm |
| Power Handling | 600W RMS / 1800W Peak |
| Frequency Response | 26Hz – 200Hz |
| Sensitivity | 81 dB |
| X-Max | 20mm |
| Mounting Depth | 3.25" (82.55mm) |
| Cutout Diameter | 11.02" (280mm) |
| Voice Coil Diameter | 4" (102mm) |
| Magnet Type | Neodymium |
| Frame Material | Cast Aluminum |
| Dust Cap Material | Aluminum |
| Recommended Enclosure | Sealed Box (0.65 – 1.5 cu. ft.) |
| Warranty | 1 Year |
