Alpine S2-A36F
S-Series 4-Channel Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Alpine S2-A36F S-Series 4-Channel Class D Amplifier
The Alpine S2-A36F is a compact, Hi-Res Audio Certified 4-channel amplifier designed for dynamic full-range sound. Its Class D architecture delivers efficient power with minimal distortion, while the variable Mid-Bass EQ enhances low-frequency impact. Ideal for upgrading factory or aftermarket systems, it features side-mounted controls for easy access and a selectable remote turn-on circuit for seamless integration.
| Key Features | |
|---|---|
| Amplifier Class | Class D |
| Hi-Res Audio Certified | Yes (Up to 40kHz) |
| Mid-Bass EQ | Variable boost (0–12dB at 100Hz) on Channels 3/4 |
| Crossover Controls | Variable high-pass and low-pass filters (50Hz – 400Hz, 12dB/octave) |
| Turn-On Options | Selectable remote, signal sensing |
| Optional Remote | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |

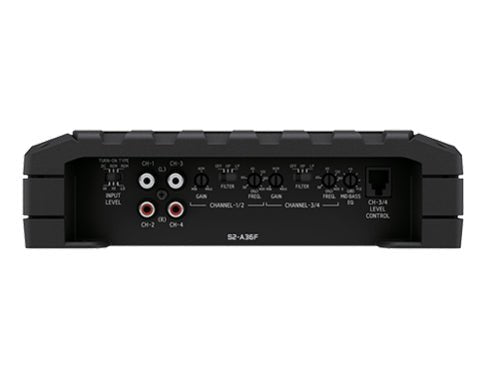

| Chassis Design | Side-mounted controls with removable end caps |
| What’s in the Box |
|---|
| 1 × Alpine S2-A36F 4-Channel Amplifier (with 40A ATO fuse installed) |
| 2 × Connection End Covers with 4 Attachment Screws |
| 4 × Self-Tapping Screws |
| 1 × 2mm Allen Wrench |
| 1 × Owner’s Manual |
| 1 × Alpine Verification Certificate (“Birth Sheet”) |
| 1 × Warranty Information Sheet |
| 1 × Power Supply Note |
| 1 × Online Product Registration Information |
| Technical Specifications | |
|---|---|
| Model Number | S2-A36F |
| Channels | 4 |
| Power Output @ 4Ω | 60W RMS x 4 |
| Power Output @ 2Ω | 90W RMS x 4 |
| Bridged Power Output @ 4Ω | 180W RMS x 2 |
| Frequency Response | 20Hz – 40kHz |
| Signal-to-Noise Ratio | >83dB |
| THD+N | ≤0.1% at rated power |
| Input Sensitivity | Low level: 0.2 – 4V; High level: 0.5 – 10V |
| Fuse Rating | 40A |
| Recommended Wiring | 8 AWG power and ground leads |
| Dimensions (W x H x D) | 8.7" x 2.25" x 8.25" |
| Weight | 4 lbs, 13 oz |
