Alpine S2-A60M
S-Series 600W Mono Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

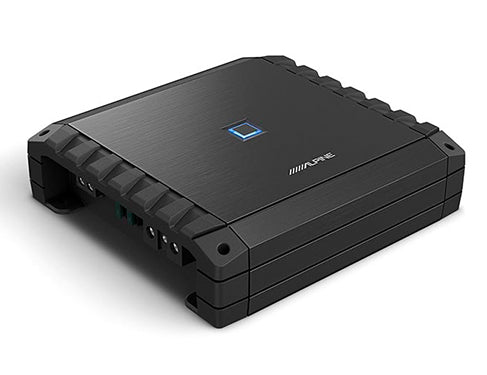

Alpine S2-A60M S-Series 600W Mono Subwoofer Amplifier
The Alpine S2-A60M is a next-generation S-Series Class D mono amplifier engineered to deliver up to 600 watts RMS of clean, distortion-free bass. Designed for seamless integration with both factory and aftermarket systems, it features a compact chassis, side-mounted controls, and a selectable remote turn-on circuit. With Hi-Res Audio certification and flexible input options, the S2-A60M is an ideal solution for audiophiles seeking powerful bass performance on a budget.
| Key Features | |
|---|---|
| Class | Class D Mono Subwoofer Amplifier |
| Hi-Res Audio Certified | Yes |
| Bass Boost | 0–12dB at 50Hz |
| Optional Remote | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |
| Turn-On Options | Selectable remote, signal sensing |

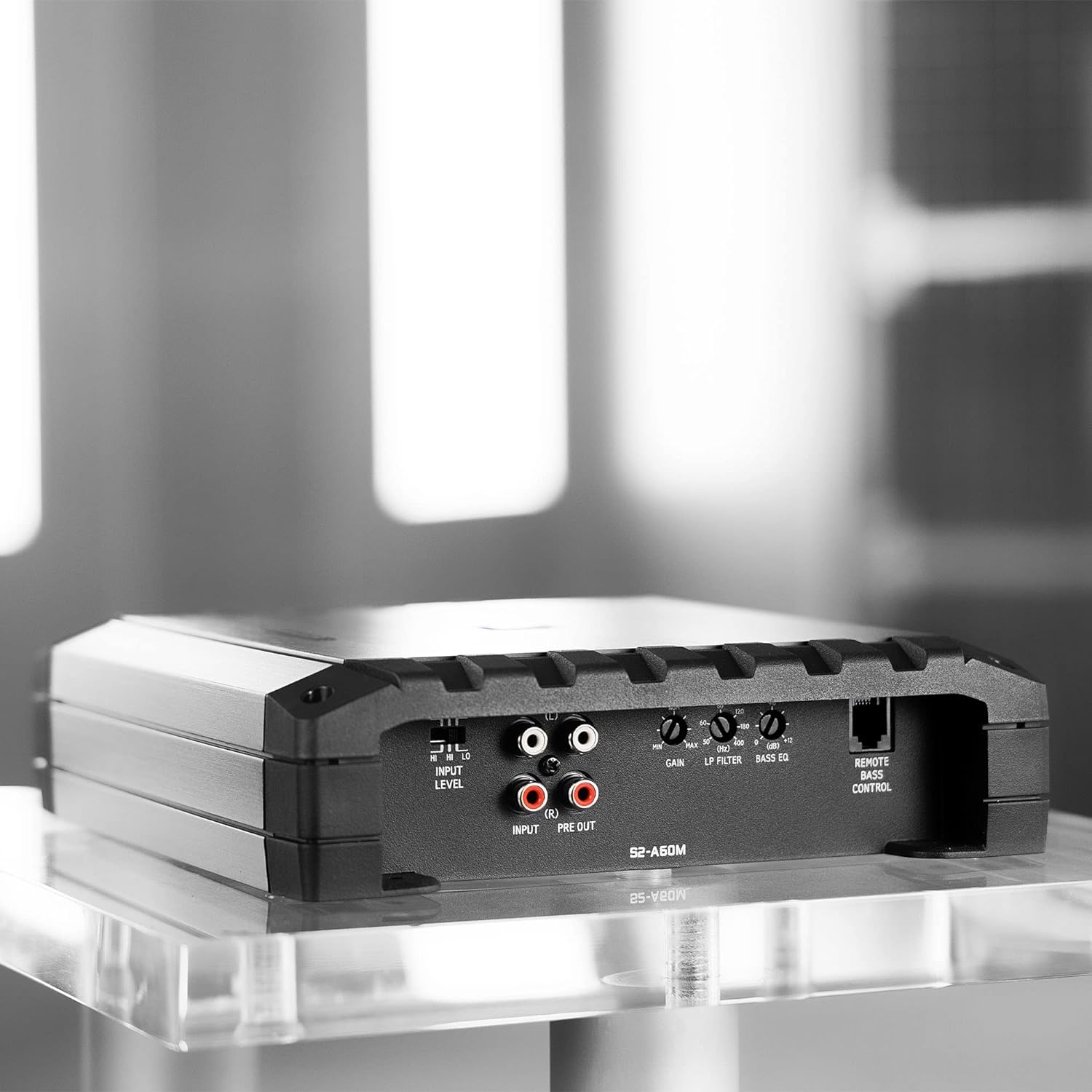

| Chassis | Compact with side-mounted controls |
| What’s in the Box |
|---|
| 1 × Alpine S2-A60M Mono Subwoofer Amplifier (with two installed 30A ATO fuses) |
| 2 × Connection End Covers with 4 Attachment Screws |
| 4 × Self-Tapping Screws |
| 1 × 2mm Allen Wrench |
| 1 × Owner’s Manual |
| 1 × Alpine Verification Certificate (“Birth Sheet”) |
| 1 × Warranty Information Sheet |
| 1 × Power Supply Note |
| 1 × Online Product Registration Information |
| Technical Specifications | |
|---|---|
| Model Number | S2-A60M |
| Channels | 1 (Mono) |
| Power Output @ 4Ω | 330W RMS x 1 |
| Power Output @ 2Ω | 600W RMS x 1 |
| Power Output @ 1Ω | 600W RMS x 1 |
| Frequency Response | 10Hz – 400Hz |
| Signal-to-Noise Ratio | 85dB (1W into 4Ω); 105dB (at rated power) |
| THD+N | ≤1% at rated power |
| Input Sensitivity | Low level: 0.2 – 4V; High level: 0.5 – 10V |
| Crossover | Low-pass filter (50Hz – 400Hz, 24dB/octave) |
| Fuse Rating | 30A × 2 (60A total) |
| Recommended Wiring | 4 AWG power and ground leads |
| Dimensions (W x H x D) | 8.7" x 2.25" x 8.25" |
| Weight | 4 lbs, 13 oz |
